COMBI 500 B
The Conrad Combi 500 for well drilling is one of the big boys in our product arsenal. This impressive installation with no less than 20 tons of pulling power can drill holes up to 400 meters deep. This Conrad machine is powered by a powerful Volvo Penta series diesel engine.
Overview
A DRILLING RIG YOU SAY ‘SIR’ TO
The Conrad Combi 500 for borehole drilling is one of the big boys in our product range. This impressive rig has no fewer than 20 tonnes in pulling power and can drill to depths of some 400 metres. The Combi 500 delivers remarkable performance in the toughest conditions imaginable and, of course, uses bigger diameters than the smaller models, including a whopping 1,000 mm! The Combi 500 is designed to maximise the suction-drill airlift process. It clearly outperforms its little sibling in this: the Combi 300.
Its incredibly solid mast construction maintains a stable setup in the toughest drilling conditions. And that’s no unnecessary luxury, as has been proven in practice. Drill operators across the world marvel at this machine’s reliability. And that doesn’t only relate to its brute force. Conrad’s high standards for user convenience are also clear for all to see on this rig.
Operation convenience
The Combi 500 is equipped with an automatic drill pipe manipulation system and all this big boy’s important drilling functions are also radio controlled. The Combi 500 can justifiably be called an advanced and one of the most modern drills in its class. The Combi 500 is customised for borehole drilling using the suction drill with air lift method, but can also be used for flushing, pulse, sonic, core and hammer drilling.
The key advantages of the Combi 500
- Complete drill pipe manipulation system with amazingly easy operation.
- Broad range of winch options for fitting both filter tubes and tools.
- Radio remote control for all important drilling functions and drilling rig setup. This maximises drill operator visibility of the drilling process and surroundings
- Suitable for both 4-meter and 5-metre-long drill pipes
- Mounted on caterpillar or truck chassis
- High diesel engine power of up to 250 kW, which significantly increases productivity
Volvo TAD884-TAD884VE
This Conrad machine is powered by a powerful Volvo Penta series diesel engine, developed in accordance with the latest emission standards and equipped with SCR, DPF+DOC, the so-called uncooled EGR and outstanding passive exhaust regeneration. These uncomplicated and compact engines are built using Volvo Group technology. They deliver high torque even at low revs and their extended oil interval of 1,000 hours make them very easy to maintain. Volvo offers 24/7 service worldwide and a 5-year manufacturer's warranty.
Specifications
| Motor | Volvo Penta, TAD884, |
|---|---|
| Vermogen | 250 kW bij 2200 rpm |
| E-missie | Stage V |
| Slag Boormast | 6,8 meter |
| Pull-up kracht | 20.000 daN |
| Pull-down kracht | 10.000 daN |
| Doorlaat boorkop | 75 / 100 / 125 / 150 mm |
| Koppel boorkop | 300 - 1.900 daNm |
| Toerental boorkop | 10 - 100 omw/min |
| Besturingssyteem | Parker I-QAN CANbus systeem |
| Boorbuismanipulator | Radiografisch |
| Boorbuis opslagsysteem | Opslag 21 x 4 meter |
| Lier | 4.000 daN 60 meter |
| Zuigpomp | 280 m3 / 9 meter w.k. |
| Compressor | 6 m3/min bij 12 bar |
| Bediening | Radiografisch |
| Gewicht | 25,000 kg |
| Bodemdruk | 0,3kg / per cm2 |
| Inhoud dieseltank | ? |
| Inhoud AD-Blue tank | ? |
| Draaikrans | 360 graden roteren |
|---|---|
| Centrale vetsmering | SKF |
| Masttranslatie | 0,8 meter slag |
| Modem | Diagnose op afstand |
| Automatische manipulator | Halfautomaat |
| Flowcontrol | Automatische pompregeling |
| Lengte boorbuizen | 5 meter uitvoering |
| Elektrisch | |
| Truck |

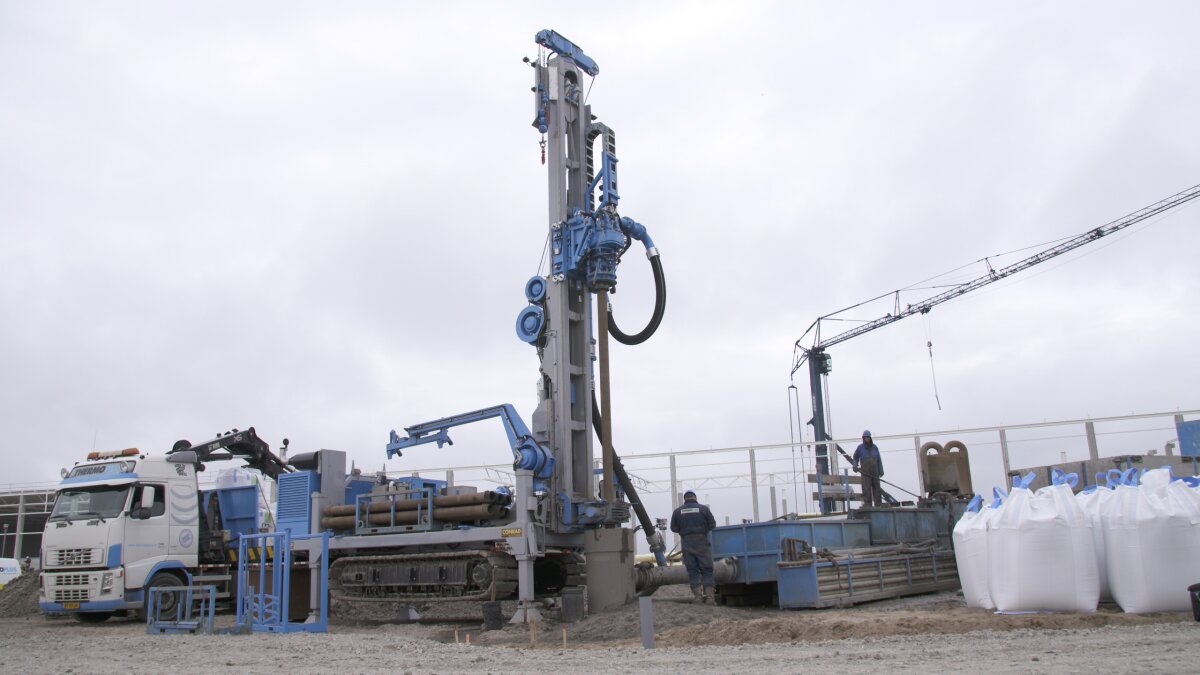

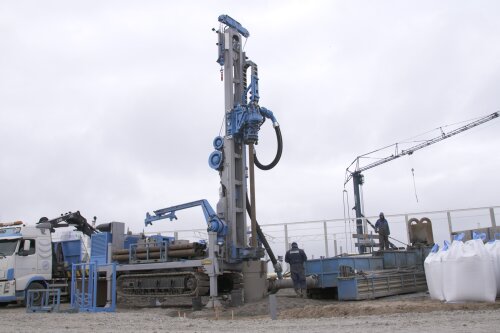

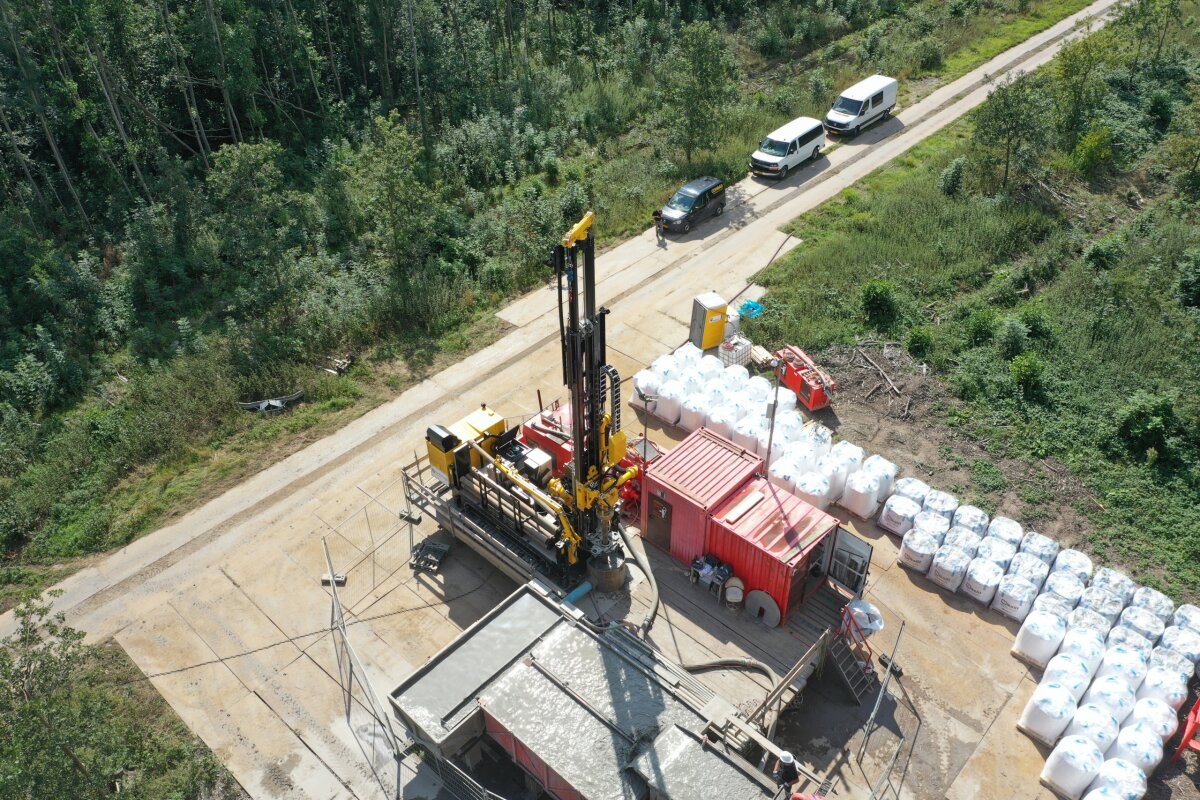

Photo archive
