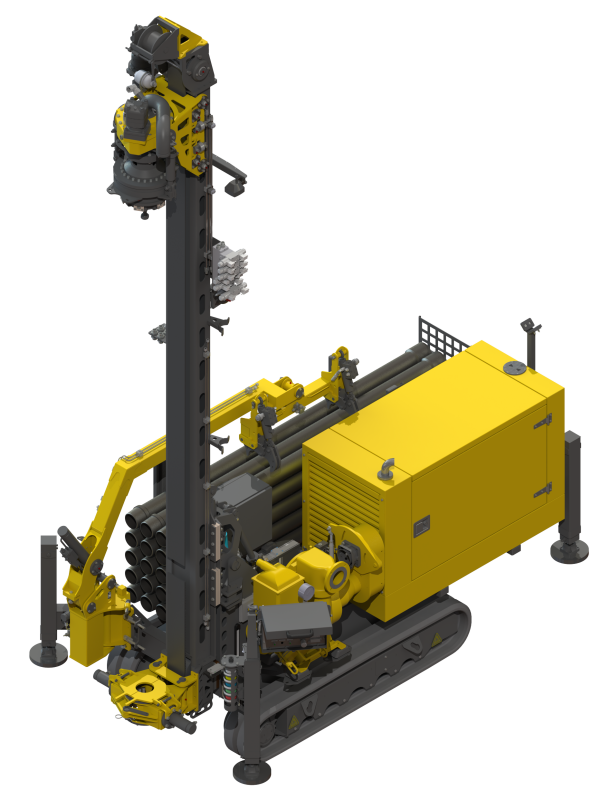

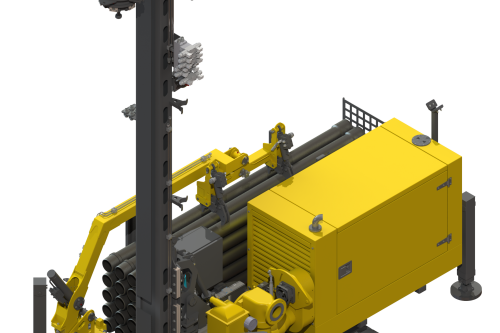

BOXER 60 B
The Boxer 60 B is a very compact, diesel-hydraulically driven auger for drilling wells. With its radio remote control, it is also easy to maneuver in situations where there is not much space. This small installation is suitable for flush drilling and suction drilling.
Overview
THE SMALL BOREHOLE DRILL THAT PACKS A PUNCH
The Boxer 60 B is an extremely compact diesel-hydraulic powered drilling rig for borehole drilling. Mounted on a tracked undercarriage, this modern compact and easy to control machine series is ideal for difficult terrain conditions. With radio control it also delivers amazingly easy manoeuvrability in situations where space is limited. This small rig is great for projects requiring flush and suction drilling. Its versatility enables the Boxer 60 B to be used for both drilling monitoring wells and sprinkler wells.
The machine’s compact size and low weight make it easy to transport on trailers without needing a commercial licence. And the drill pipe manipulator means you only need one drilling operator.
Small but sweet; the Boxer 60 B. The most important features:
- Small, lightweight machine for flush and suction drilling
- Incredibly easy operation
- Proven reliability
- Solid and robust rig, despite is compact size
- Full radio control
- Mounted on a caterpillar chassis
Operation convenience
The Scanreco operating system makes life easier for every drill operator. Operators can use the multi-functional controller for quick menu navigation on the eight-inch LCD monitor. The hi-res anti-reflection screen is always easy to read even when the sun’s shining and the sleek layout provides a clear overview and amazing functionality.
In terms of engine power, there are two options: a Kubota diesel engine or the electric version. In sheer power they’re true equals.
Kubota 56 kW
This machine is equipped with Kubota’s compact diesel engine with a capacity of 56 kW. Kubota engines are among the best in the world. This energy-efficient and environmentally-friendly product line meets all the latest emission requirements and delivers simply incredible performance. All Kubota engines up to 56 kW comply with stage 5 (V), without needing an SCR system or Ad Blue System, making them considerably more economical in purchase and use. The costs throughout the service life are also lower as Ureum is used, so filter replacement and associated maintenance are no longer needed.
Specifications
| Engine | Kubota, V3307-CR-T-E5, |
|---|---|
| Power | 56 kW at 2400 rpm |
| E-mission | Stage V |
| Stroke Drill mast | 3.4 meters |
| Pull-up force | 4,000 daN |
| Pull-down force | 2,000 daN |
| Drill head passage | 100 mm |
| Drill head torque | 600 daNm |
| Drill head speed | 10 - 60 rpm |
| Control system | Parker I-QAN CANbus system |
| Drill pipe manipulator | Radiographic |
| Drill pipe storage system | Storage 15 x 2.5 meters |
| Winch | 500 daN 30 meters |
| Suction pump | 160 m3 / 8.8 meters w.k. |
| Weight | 2,800 kg |
| Bottom pressure | 0.3kg / per cm2 |
| Diesel tank capacity | ? |
| Central grease lubrication | SKF |
|---|---|
| Masttranslation | 0.4 meter stroke |
| Modem | Remote diagnostics |
| Automatic manipulator | Semi-automatic |
| Electric | |
| Truck |

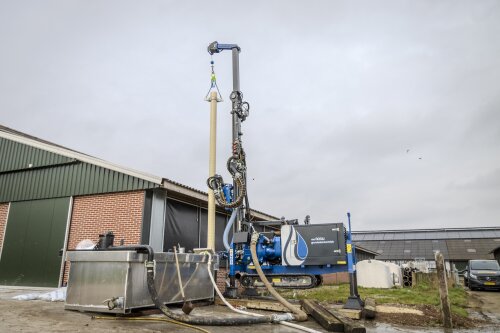

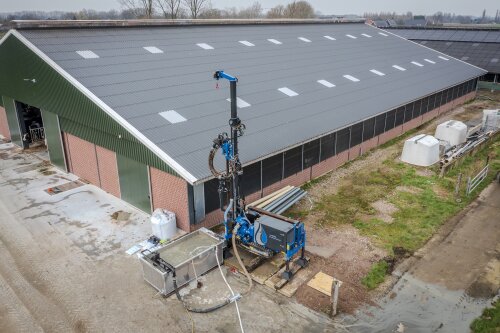

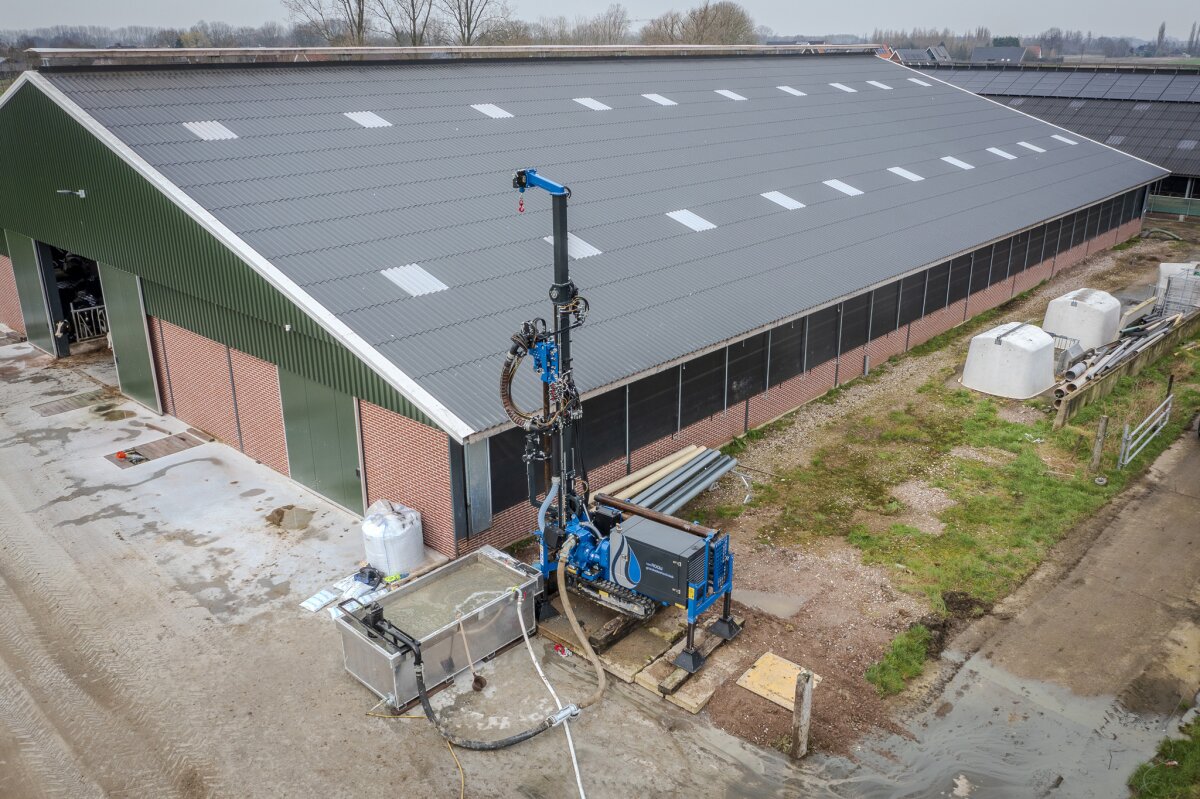

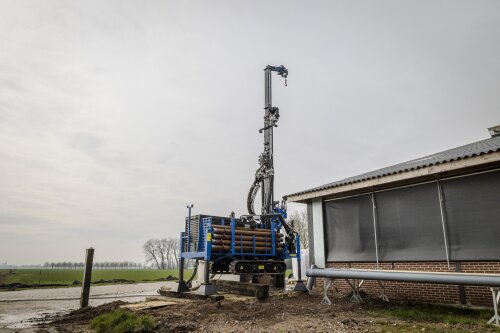

Photo archive
