SBM 9.0 JETTING MAST FOR WOLBERS WATERMANAGEMENT B.V.

Wolbers Watermanagement is an experienced family business specializing in groundwater control. They operate for clients in both the Netherlands and Germany.

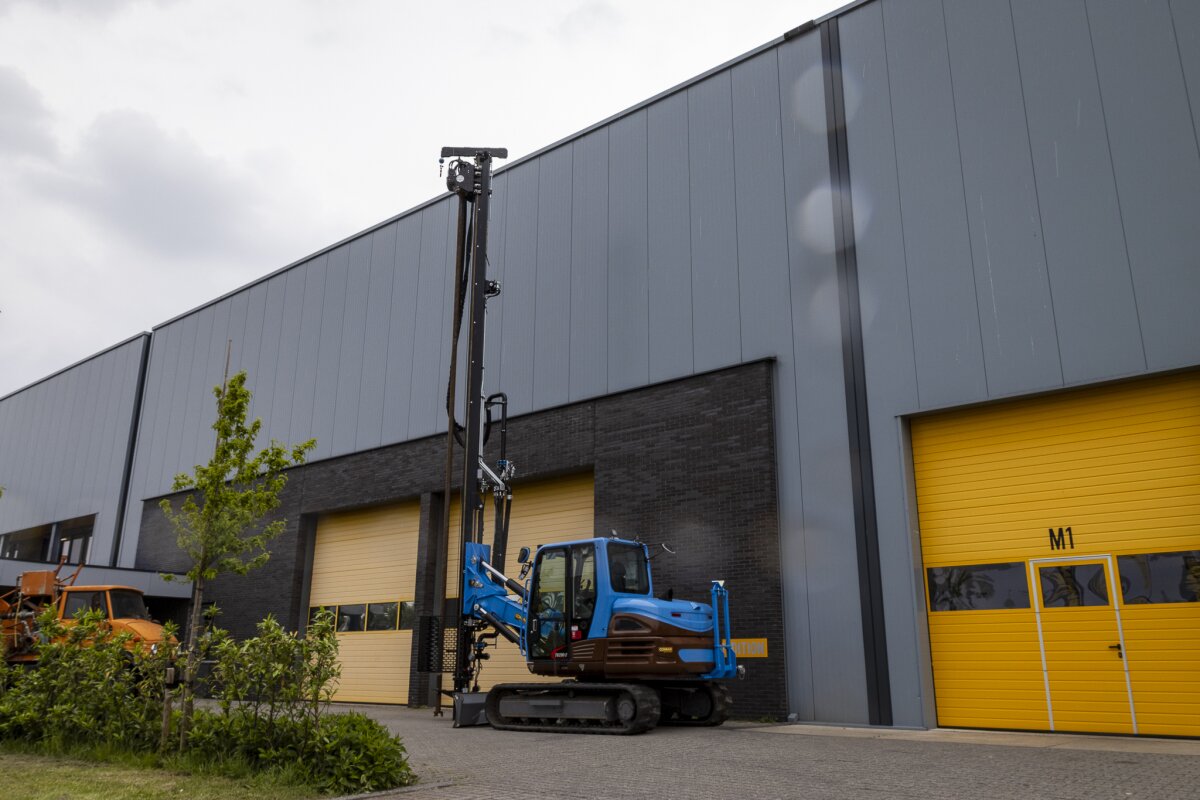

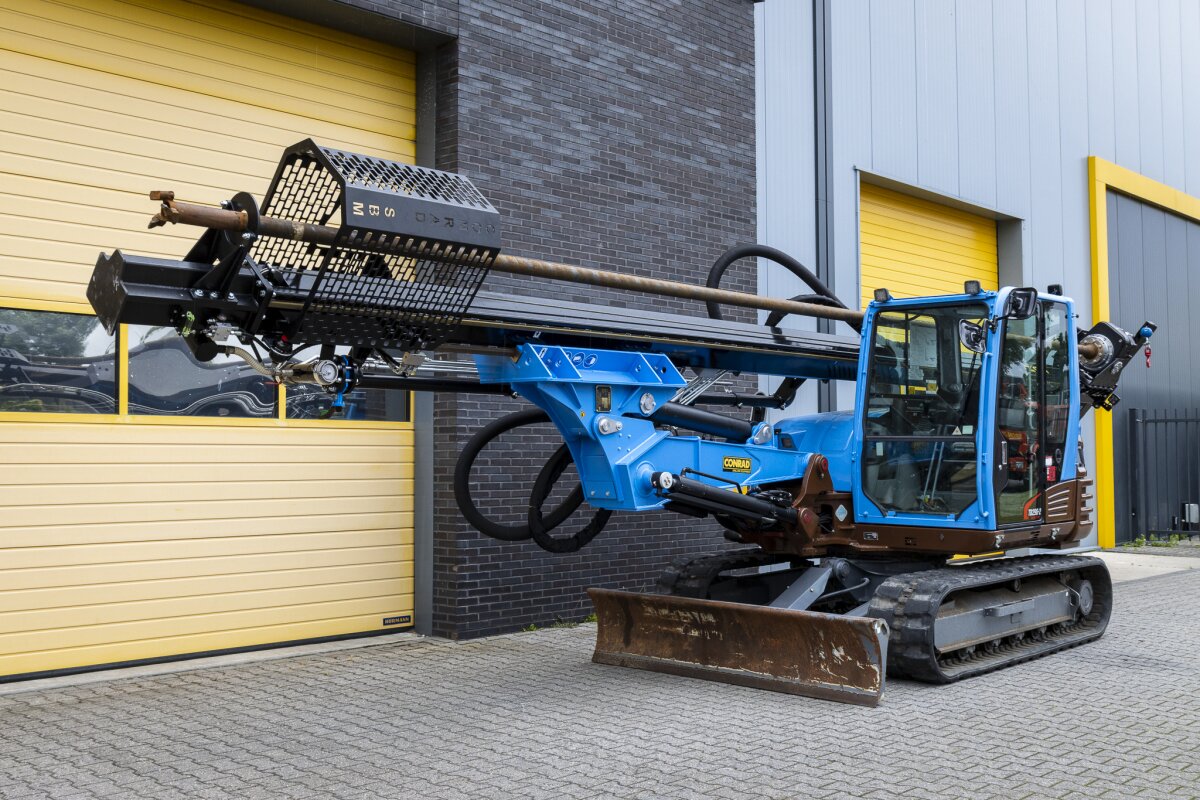

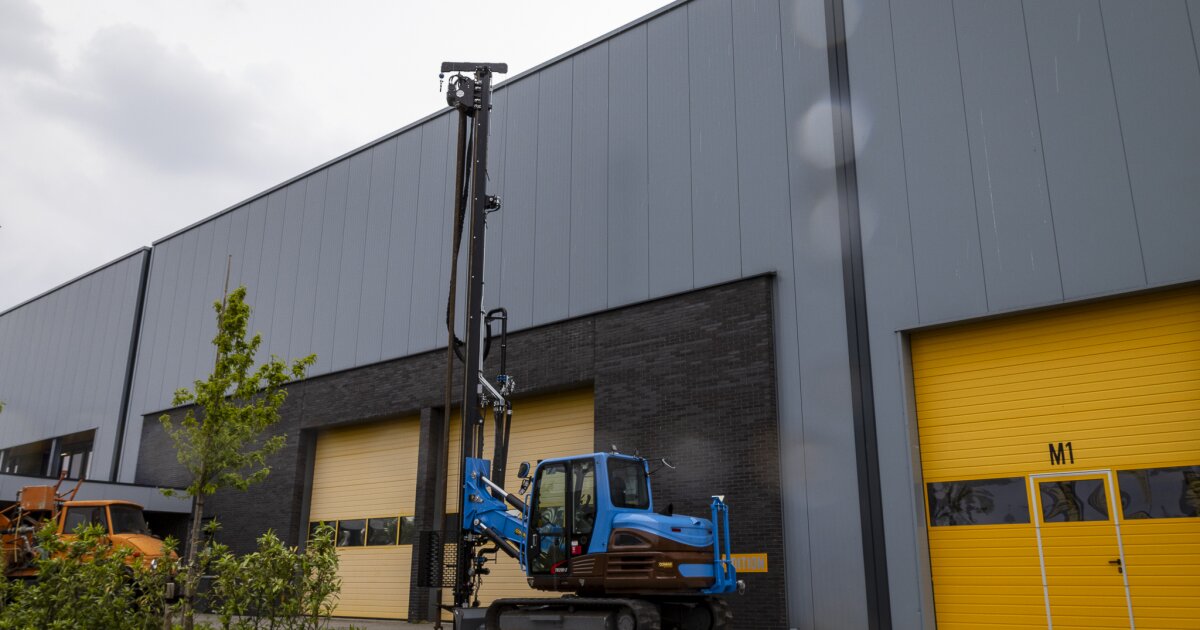

The SBM 9.0 stands out due to its specific design, which allows drill masters maximum visibility of the drill rod. The jetting mast is mounted at a 45-degree angle at the front, offering more control and flexibility when drilling in challenging situations.

Technical specifications of the SBM 9.0:

• Excavator tonnage: 8
• Stroke length of the jetting mast: 9 meters
• Pull-up force: 1,000 daN
• Pull-down force: 500 daN
• Borehead passage: 75 / 100 / 125 mm
• Borehead torque: 300 / 600 daN
• Borehead rotation speed: 60 / 100 rpm
• Type of crane: Takeuchi TB290-2

We want to thank Wolbers Watermanagement for their trust. We are confident that the SBM 9.0 will support them in future projects.
